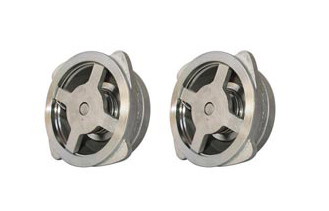

Single Disc Spring Loaded Check Valve

As being foremost manufacturer and supplier of standardized valve series, we have developed large series of single disc spring loaded check valve. It is mounted between two flanges.

Our series is produced confirming DIN 3230. It is tested as per API-598.

It is generally used for vacuum applications. It is also suitable for pneumatic operations. It contain spring loaded solid disc. Our series is available with varied size options.

loaded check valve

It is available with 15 NB to 100 NB size. It is provided with full port opening. It is operated with return pressure itself. It is provided with pressure rating ANSI-150#, 300#, and 600#. So many alternative construction materials are available for the ordinary and typical operations.

TECHNICAL SPECIFICATION
Range of size 15 NB to 100 NB
Rating of pressure ANSI – 150#, 300#, 600#
Type single disc
End connection Sandwich
Operation automatic with return pressure
Port opening Full
Seat soft – rubber/PTFE/ metal to metal
Disc solid disc spring loaded
Packing and gasket N.A
MOC refer material chart
Code of design din – 3230
Testing API – 598
Inspection manufacturer/ client/ 3rd party
