High Pressure Valves

We have designed great series of high pressure valve that is fabricated as per defined international conditions. It is quality tested with preset industrial parameters.

To offer valve series with optimum quality, we monitor whole production procedure from procurement of raw material to complete process till final end product. We provide range of size of 15 NB to 300 NB.

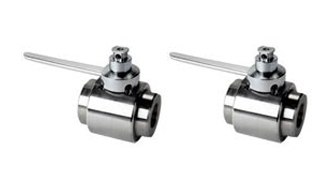

high pressure valves

We have developed large range of pressure relief valves with many structural alternatives. It is designed as per design code BS-5331. It is tested as per Api-598. It is available with full and regular port opening. It is available with operational options wrench, geared, pneumatic and manual.

Depending on the operational criteria, it is provided with different options of end connections like flanged, socket weld and screw weld. We also provide packing and gasket options of PTFE, glass filled Teflon and graphite. We offer our high pressure valves in 3, 2 and 1piece. It is also available with fire safe facility. Our offered series of valves offer pressure rating range of 150#, 300# and 600#.

TECHNICAL SPECIFICATION
Range of size 15 NB to 300 NB
Rating of pressure ANSI/BS 150#, 300#, 600#
Type 3,2 or 1 piece, fire safe/ non fire safe
End connection flanged/socket weld/ screw weld
Operation wrench/manual/ gear/pneumatic
Port opening regular/full
Seat PTFE/carbon or glass filled teflon/ graphite
Wedge/disc/ball floating/ trunnion mounted
Packing and gasket PTFE/ glass filled teflon/ graphite
MOC refer material chart
Code of design BS – 5331
Testing API – 598
Inspection manufacturer/ client/ 3rd party

APPLICATIONS :

  • Anti corrosive
  • Easy to install
  • Least maintenance
  • Perfect dimension
  • Durable and economic

FEATURES :

  • Anti-corrosive
  • Accurate custom design
  • Modulating action
  • Highly durable
  • Simple to operate and repair
