Gate Valve Both Solid Flexible Wedge

We manufacture, supply and export vast series of gate valves with widest choices of construction material, sizes and configurations. Our series of gate valves are fabricated as per API-600 and API 6D.

We offer wide range of gate valves according to its demand for different industrial applications. It is available with pressure rating from 150# to 2500#.

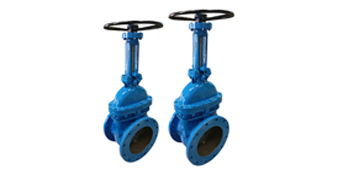

gate valve both solid flexible wedge

To offer suitable models for high temperature and corrosion applications, we provide forged and cast carbon steel and alloy steel valves. It is also available with all grades of stainless steel and super alloy steel. We exclusively provide such valve series with hastelloy-C, duplex and super duplex steels.

It provides full opening of wedge to ensure additional pressure drop. To offer better durability to the device, it is provided with seal welded seat rings or screwed in seat rings. Our gate valves ensure re-packing under pressure during full opening condition.

TECHNICAL SPECIFICATION
Size Range 50 NB to 900 NB
Pressure Rating ASME - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
Type OS & Y, Bolted / Pressure Seal Bonnet / Seal welded Bonnet etc.
End Connection Flanged / RTJ / Butt Weld /Socket Weld
Operation Hand wheel/ Manual gear / Electric motor Actuator
Port Opening Full
Seat Seal welded/ Integral / Renewable
Wedge Solid / Flexible / Dual Disc
Gasket & Packing PTFE / Graphite / Spiral wound / Ring joint
MOC Refer Material Chart
Design Code API - 595 / 600 / 603 / 604 / 6D
Testing API 598
Inspection 3rd Party / Client / Manufacturer
