Alloy 20 Valves


In order to cater special industrial and domestic applications, we have developed the series of alloy-20 valves that are designed with using modern tools and standard construction material. Alloy-20 is made from the perfect combination of chromium-molybdenum-nicle and stainless steel alloy. We have developed numerous series of valves from alloy-20 valves.

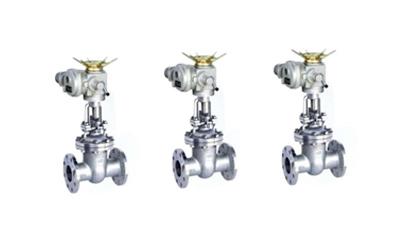

Alloy-20 Gate Valves

Alloy-20 Gate Valves

alloy-20 gate valves are specially designed for varied range of high temperature and anti corrosive operations. it is exclusively made from accurate blend of chromium-molybdenum-nickle and stainless steel alloy.

It provides highly safe and reliable operations. Due to its reliability, our series of alloy-20 gate valves are used in many industries like paper and pulp, plastic industries. It is extensively used for various applications in chemical and petroleum industries and offers perfect sealing with tight shutoff for aggressive fluids and also for the high temperature applications.
We offer tailor made alloy-20 gate valves with suitable wedge options. It is available with solid wedge, parallel wedge, split wedge, flexible wedge as well as different options of gasket and gland packing to suit perfectly the required actions.

Our FLOEC brand is became the synonymous of the high quality. We applied novel tools and latest technology to fulfill bulk requirements of such series of alloy-20 gate valves.


TECHNICAL SPECIFICATION

Range of size

50 NB to 600 NB

Rating of pressure

ANSI-150#, 300#, 400#, 600#, 900#, 1500#, 2500#

Type

OS & Y, bolted/ pressure seal bonnet

End connection

flanged/ butt weld

Operation

hand wheel/manual, gear/electric motor Actuator

Port opening

full

Seat

integral, renewable, seal welded

Wedge

solid, flexible, dual disc

Packing and gasket

PTFE/ glass filled teflon/ graphite

MOC

refer material chart

Code of design

API – 595/600/603/604

Testing

API – 598

Inspection

manufacturer/ client/ 3rd party



Alloy-20 Globe Valves

Alloy-20 Globe Valves

We hold adequate stock of construction material to hand over accurate product in stipulated time span as per requirement. our alloy-20 globe valves are made from exact combination of nickel, molybdenum, chromium and stainless steel alloy. service life.

It contains high anti corrosive property, so favorably used in many industries for corrosive and high pressure applications. It is used to slow down the flow or to stop the flow. it is also helpful in monitoring of the fluid flow with decreasing pressure drop in the system.
We cater chemicals, petrochemicals, pharmaceuticals, fertilizers, food processing, paper and pulps, beverages and many more industries. it is preferred for its smooth functioning and longer


TECHNICAL SPECIFICATION

Range of size

50 NB to 300 NB

Rating of pressure

ANSI-150#, 300#, 400#, 600#, 900#, 1500#, 2500#

Type

OS & Y, bolted/ pressure seal bonnet

End connection

flanged/ butt weld

Operation

hand wheel/manual, gear/electric motor Actuator

Port opening

full

Seat

integral, renewable, weld deposited

Disc

swiwel-flat/taper/control/ parabolic

Wedge

solid, flexible, dual disc

Packing and gasket

PTFE/asbestos/graphite/Spiral wound/ringjoint

MOC

refer material chart

Code of design

BS 1873, DIN- 2401

Testing

BS 5146

Inspection

manufacturer/ client/ 3rd party

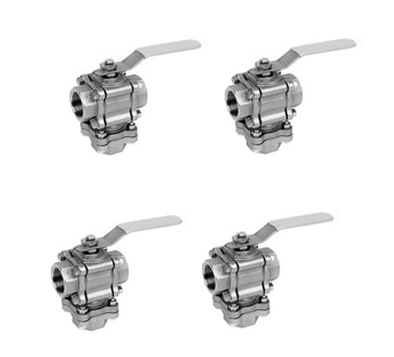

Alloy-20 Ball Valves

Alloy-20 Ball Valves

We have developed highly efficient series of alloy-20 ball valves made from accurate combination of the metals stainless steel alloy, chromium-molybdenum-nickel.

We have geared up well equipped manufacturing setups to offer high quality alloy-20 ball valves extensively accessible with varied range of size, pressure and end connection options.
It is used in so many industrial sectors. It is used to control the flow. It contains spherical disc for the function. It is a quarter turn valve and proven very efficient even after disuse of long time. We follow international quality conditions and norms for the fabrications.
As per demand it is available with regular or full port opening options. Depending upon the applications it is available with varied seat options like glass or carbon filled Teflon, PTFE and graphite. Packing and gasket have also material options like PTFE, glass filled Teflon and graphite.


TECHNICAL SPECIFICATION

Range of size

15 NB to 300 NB

Rating of pressure

ANSI/BS 150#, 300#, 600#

Type

3,2 or 1 piece, fire safe/ non fire safe

End connection

flanged/socket weld/ screw weld

Operation

wrench/manual/ gear/pneumatic

Port opening

regular/full

Seat

PTFE/carbon or glass filled teflon/ graphite

Wedge/disc/ball

floating/ trunnion mounted

Packing and gasket

PTFE/ glass filled teflon/ graphite

MOC

refer material chart

Code of design

BS – 5331

Testing

API – 598

Inspection

manufacturer/ client/ 3rd party


Alloy-20 Non-Return Valves
Alloy-20 Non-Return Valves

Alloy-20 is the perfect mixture of the metals like molybdenum, nickel, chromium and stainless steel. Such mixture is effectively used for the manufacturing of the valve for the high pressure and corrosive applications.

As the name suggest, it is used to prevent back flow of the fluid in the system. So it is commonly used with aggressive material and prevents back flow of the medium.
It is specially designed to provide proper sealing and to prevent back flow of the fluids. Due to such high grade material it is efficiently used for the anti corrosive applications of several industries. It is effectively used in many industries like chemical, fertilizers, oil refineries, food processing, pharmaceuticals and many more industries. Alloy-20 Non Return Valve is helpful in minimum pressure drops. It is light in weight. It is used in heating and cooling systems.
